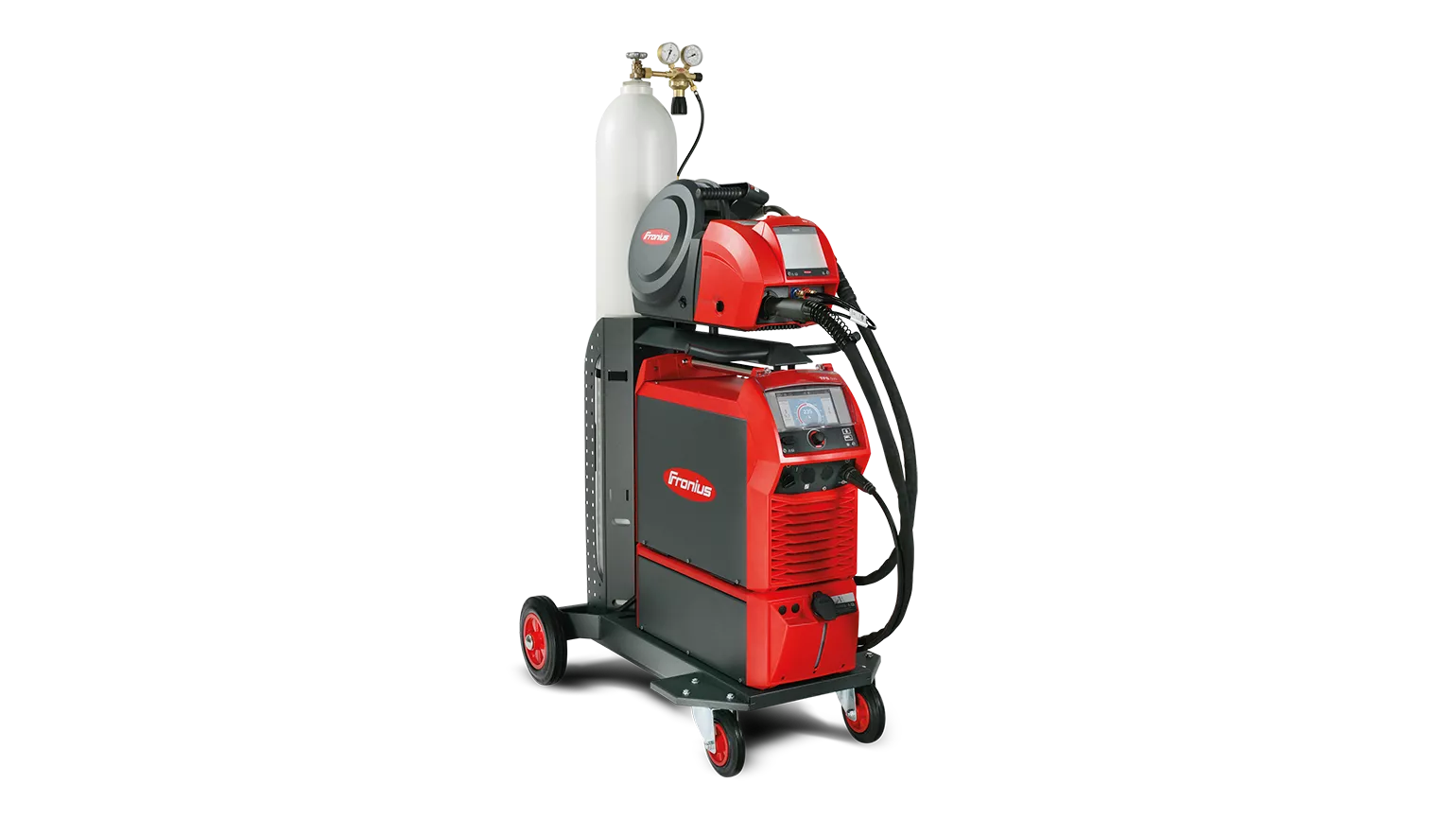

TPS/i

Please choose your desired product.

Product details

Technical Data

General Data

Mains voltage	3 x 400V
Mains Frequency	50-60Hz
Welding current min.	3 A
Welding current max.	500 A
Welding current / Duty cycle [10min/40°C]	500A / 40%
Welding current / Duty cycle [10min/40°C]	430A / 60%
Welding current / Duty cycle [10min/40°C]	360A / 100%
Open-circuit voltage	71 V
Degree of protection	IP23
Length	706 mm
Width	300 mm
Height	510 mm
Weight	38 kg

Contact

Would you like to find out more about the product?

Send us a message

Find contacts worldwide

More information about the features of the TPS/i welding machine

Current firmware and software updates for the TPS/i

The trial license allows you to test all welding packages and options for some arc hours

Interactive Operating Instruction

Clear, digital and mobile optimized for every device

TPS/i | Future-proof solution

This is what our customers have to say about the TPS/i

Function overview

	TPS 320i	TPS 400i	TPS 500i	TPS 600i
Mains voltage	3 x 400 V 3 x 380 – 460 V (/nc) 3 x 575 V (/600V/nc) 3 x 200 – 460 V (/MV/nc)	3 x 400 V 3 x 380 – 460 V (/nc) 3 x 575 V (/600V/nc) 3 x 200 – 460 V (/MV/nc)	3 x 400 V 3 x 380 – 460 V (/nc) 3 x 575 V (/600V/nc) 3 x 200 – 460 V (/MV/nc)	3 x 400 V 3 x 380 – 460 V (/nc) 3 x 575 V (/600V/nc)
Mains frequency	50 – 60 Hz
Cos phi	0,99
MIG/MAG welding current range	3 – 320 A	3 – 400 A	3 – 500 A	3 – 600 A
10 min/40°C (104°F)40% D.C	320 A	400 A	500 A	600 A
10 min/40°C (104°F)60% D.C	260 A	360 A	430 A	600 A
10 min/40°C (104°F)100% D.C	240 A	320 A	360 A	500 A
Open circuit voltage	73 V 84 V (/nc) 67 V (/600V/nc) 68 V (/MV/nc)	75 V 83 V (/nc) 68 V (/600V/nc) 67 V (/MV/nc)	71 V 82 V (/nc) 71 V (/600V/nc) 68 V (/MV/nc)	71 V 85 V (/nc) 73 V (/600V/nc)
MIG/MAG working voltage	14,2 – 30 V	14,2 – 34 V	14,2 – 39 V	14,2 – 44 V
Protection class	IP23
Dimensions l x w x h	706 x 300 x 510 mm

Show all downloads for product

TPS/i Overview

TPS/i C: Technical data
