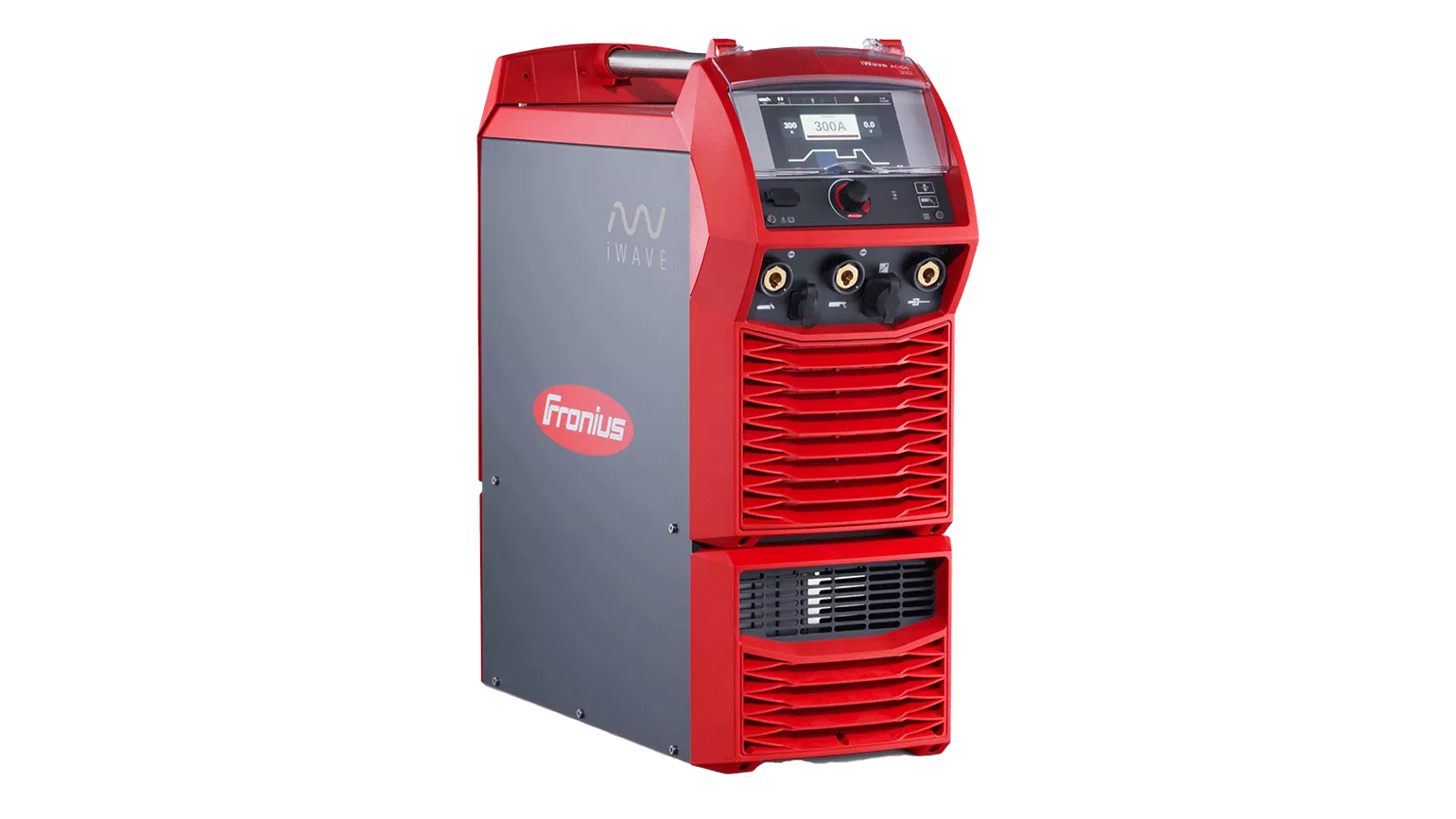

iWave TIG

Please choose your desired product.

Product details

Technical Data

General Data

Mains voltage	3 x 400 V
Mains voltage tolerance	+/-15 %
Welding current min.	3 A
Welding current max.	300 A
Welding current / Duty cycle [10min/40°C]	300A / 40%
Welding current / Duty cycle [10min/40°C]	260A / 60%
Welding current / Duty cycle [10min/40°C]	240A / 100%
Operating voltage min.	10,1 V
Open-circuit voltage	101 V
Protection class	IP23
Length	706 mm
Width	300 mm
Height	740 mm
Weight	64,4 kg
Weight incl. packaging	67,8 kg
Interference emission class	A
Schweißprozess	Metall-Inertgas

Technical Data

Mains fuse	16 A
Power Factor (pf)	0,99

Contact

Would you like to find out more about the product?

Send us a message

Find contacts worldwide

More information about the features of the iWave welding machine

The trial license allows you to test all welding packages and options for some arc hours.

Interactive Operating Instruction

Clear, digital and mobile optimized for every device

iWave AC/DC - function overview

Functions	iWave 190i	iWave 230i	iWave 300i	iWave 400i	iWave 500i
Pulse welding	x	x	x	x	x
RPI on	x	x	x	x	x
RPI auto	x	x	x	x	x
SoftStart (touchdown ignition)	x	x	x	x	x
HF ignition	x	x	x	x	x
Touch HF ignition	x	x	x	x	x
TIG Comfort Stop	x	x	x	x	x
Arc break voltage	x	x	x	x	x
Automatic cap-shaping	x	x	x	x	x
Waveform setting (AC/DC)	x	x	x	x	x
Tacking	x	x	x	x	x
Synchronized welding	x	x	x	x	x
Automatic gas post-flow	x	x	x	x	x
CEL mode	x	x	x	x	x
CycleTIG	x	x	x	x	x
Multiprocess (TIG, MMA)	x	x	x	x	x
Multiprocess PRO			x	x	x
Generator-compatible	x	x	x	x	x
Mulitvoltage 120/230V	x	x	x	x	x
Multivoltage 200-600V			x	x	x
Cooling type	Gas-cooled	Gas or water- cooled	Gas or water- cooled	Gas or water- cooled	Gas or water- cooled
Connectivity (WLAN, NFC, Bluetooth)	x	x	x	x	x
Ethernet and Speednet as standard	Ethernet optional	Ethernet optional	Ethernet and Speednet as standard	Ethernet and Speednet as standard	Ethernet and Speednet as standard
